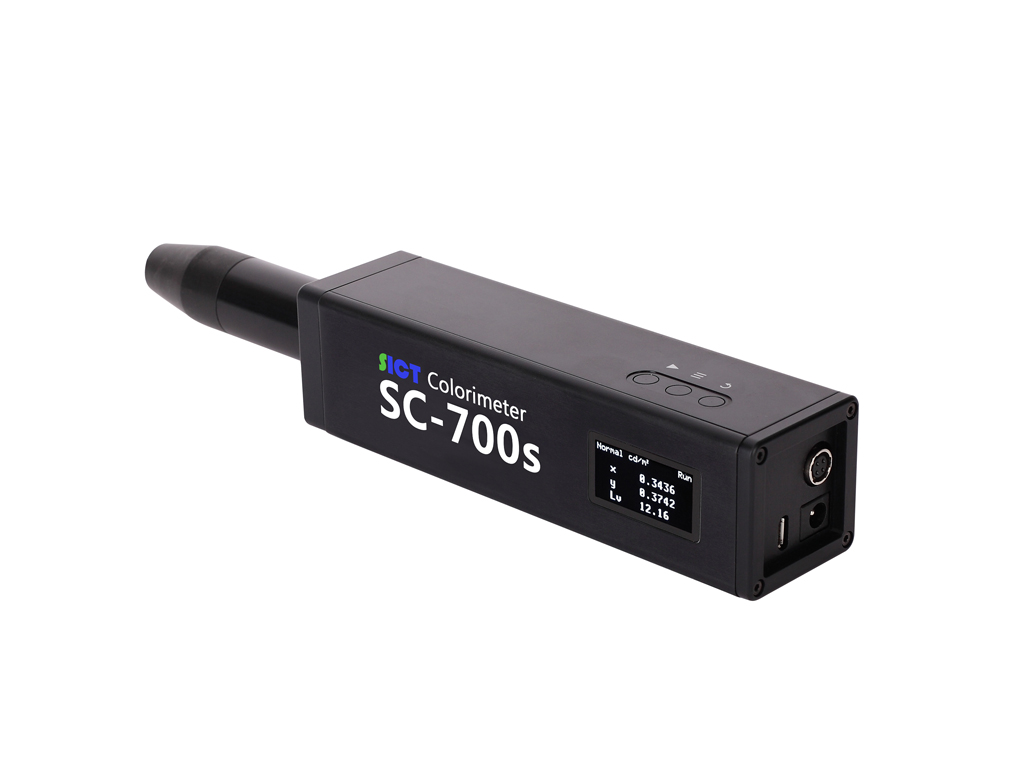

측정기 [Discontinued] SC-700s (Colorimeter)

페이지 정보

profile_image
작성자 관리자
댓글 0건 조회 329회 작성일 24-07-26 10:06

본문

Photo detector
Si-Photo diode
Spectral responsivity
CIE1931 color matching function
Measurement area
Φ 10 mm
Measurement distance
30 ± 5 mm
Measurement Mode
xyLv, XYZ, u’v’Lv, T△uvLv
Measurement Range
0.001 ~ 20,000 ㏅/㎡

광휘도/색도 측정기
Measurement : Luminance, Chromaticity, Correlated Color Temperature
Adjustment : White balance, Uniformity, Contrast, Gamma

PDF 다운로드PDF 다운로드

상세 내용

■ Application

    - Object(Target) : Display (OLED/LED/LCD/PDP/Quantum Dot) and LED light

    - Measurement : Luminance, Chromaticity, Correlated Color Temperature, Flicker(option)

    - Adjustment : White balance, Uniformity, Contrast, Gamma


■ Feature

    - High accuracy, High sensitivity, High speed

    - Compact design

    - Easy connect with power bank

    - Easy to use
